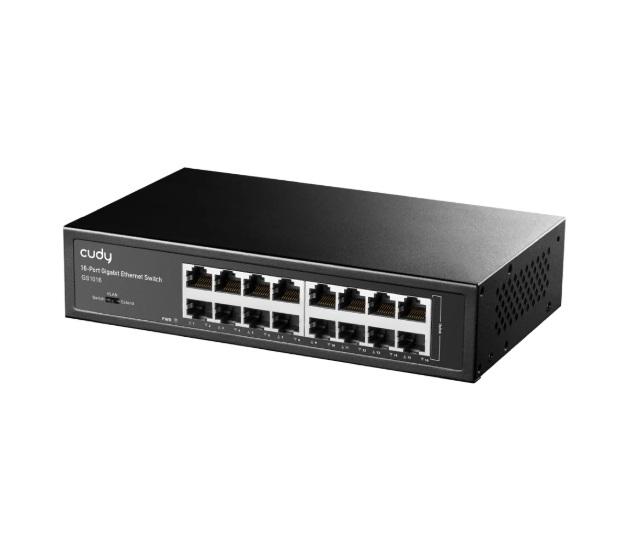

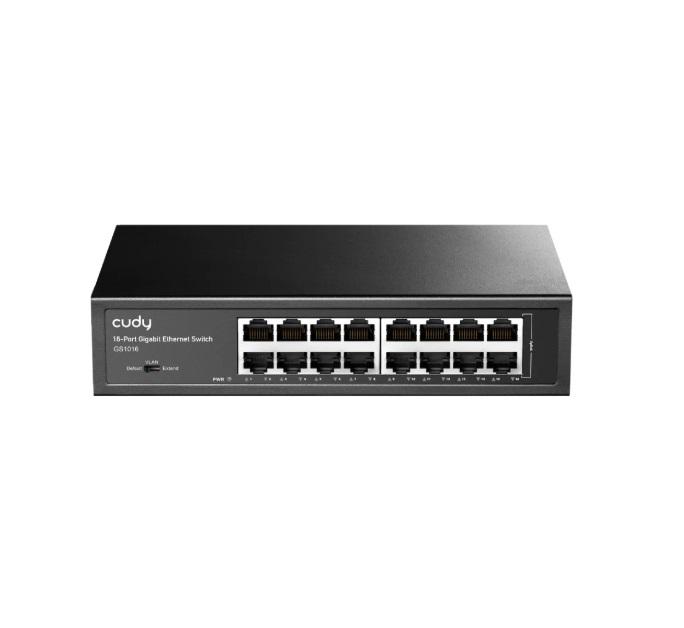

GS1016 Cudy Ethernet Switch 16-Port 10/100/1000

60.00$ 630,000 ل.س

GS1016 3.0 – 16-Port Gigabit Unmanaged Switch 10/100/1000
Model and Ports
• Model: GS1016 Version 3.0
• Total Ports: 16 Gigabit RJ45 Ethernet ports (10/100/1000 Mbps)
• Shielded RJ45 Support: Yes
• Extend Mode Ports: Ports 1 to 14 (up to 250 meters at 10 Mbps)
• VLAN Mode Ports: Ports 1 to 14 (isolation from each other, uplink only)
Switching Modes
• Default Mode: All ports communicate normally
• VLAN Mode: Ports 1–14 isolate from each other, communicate only with uplinks
• Extend Mode: Ports 1–14 reach 250 meters distance at reduced 10 Mbps
Performance
• Switching Capacity: 32 Gbps
• Forwarding Rate: 23.808 Mpps
• Jumbo Frame: Up to 15 KB
• MAC Address Table: 8192 entries
• Packet Buffer: 4 Mbit
• Supported Cable Performance:
o Cat 3: 100 m @ 10 Mbps
o Cat 5: 100 m @ 100 Mbps
o Cat 5e: 100 m @ 1 Gbps or 250 m @ 10 Mbps (Extend mode)

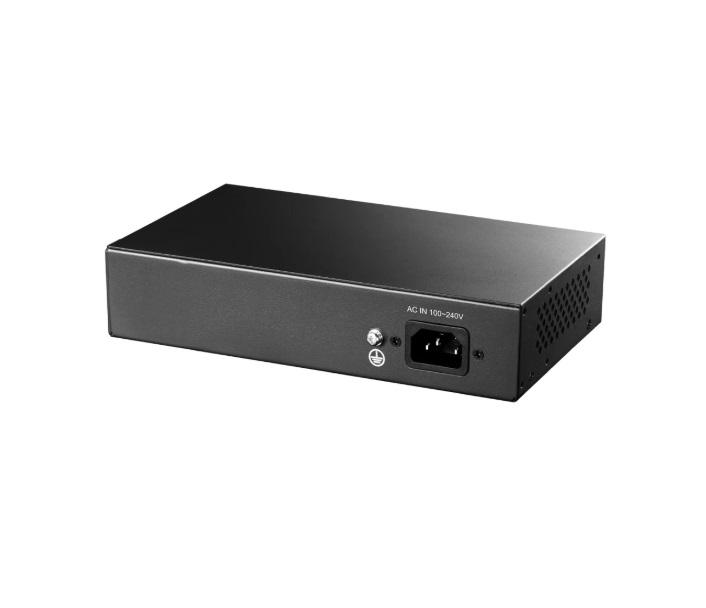

Power
• Input: 90–260V~ AC, 50/60 Hz
• Power Saving: Supported
• Max Power Consumption: 7.8 W
• Idle Power Consumption: 4.5 W
• Input Connector: AC Inlet
Protocols and Features
• IEEE Standards:
o 802.3i (10BASE-T)
o 802.3u (100BASE-TX)
o 802.3ab (1000BASE-T)
o 802.3x (Flow Control)
o 802.1p (QoS/CoS)
• Layer 2 Features:
o IGMP Snooping
o Loop Detection and Prevention
o DSCP QoS
o 802.1p QoS
Reliability and Protection
• Grounding: Three-prong plug and dedicated grounding point
• ESD Protection: 6 kV contact, 8 kV air
• Surge Protection:
o Power: 2 kV (DM), 4 kV (CM)
o RJ45: 4 kV (CM)
Physical Specifications
• Dimensions: 200 × 118 × 44 mm (7.87 × 4.65 × 1.73 in)
• Weight: 619 g (21.83 oz.)
• Casing: Metal
• Installation: Desktop or rackmount with brackets

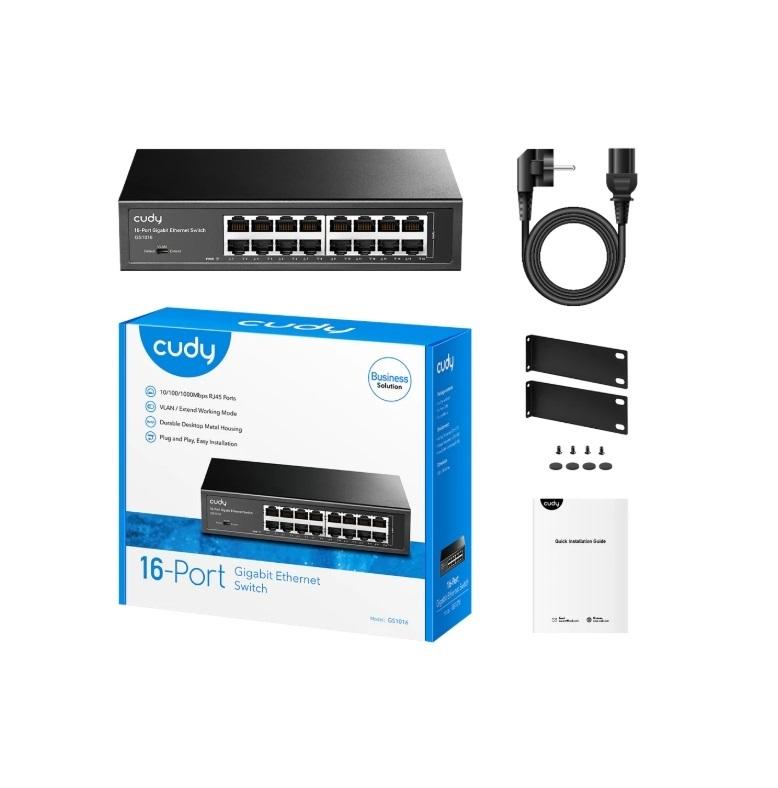

Package Contents
• GS1016 switch unit
• Power cord
• Installation guide
• Mounting kit

الشركة : ZERO ONE

الحالة : جديد
